▪ Main Fuction

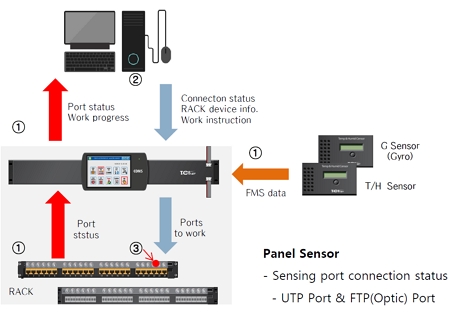

LINKVIEW consists of Hardware and Software to implement CMS and FMS integration functions. ① Hardware detects changes in various sensors and transmits them to LINKVIEW through RACKVIEW. ② LINKVIEW integrated management allows data collection, processing, and analysis by computer room, office room, rack, and port to be identified through LEDs in case of a failure, thereby increasing management work efficiency.
LINKVIEW Management Server - Full Network Configuration Status - Managing Automatic Task Instructions - Check&ManagePort In/Out Event - Provides various reports for N/W & Enents - Managing RACK Implementation Drawings - Managing data collected by the Sensor RACKVIEW Controller - Interface with the management server - Passes data generated by the Sensor to the management server - Check work instruction / work progress - Check port line connection status, etc

▪ Main Fuction

LINKVIEW consists of Hardware and Software to implement CMS and FMS integration functions.
① Hardware detects changes in various sensors and transmits them to LINKVIEW through RACKVIEW.
② LINKVIEW integrated management allows data collection, processing, and analysis by computer room, office room, rack,
and port to be identified through LEDs in case of a failure, thereby increasing management work efficiency.

LINKVIEW Management Server

- Full Network Configuration Status
- Managing Automatic Task Instructions
- Check&ManagePort In/Out Event
- Provides various reports for N/W & Enents
- Managing RACK Implementation Drawings
- Managing data collected by the Sensor

RACKVIEW Controller

- Interface with the management server
- Passes data generated by the Sensor
to the management server
- Check work instruction / work progress
- Check port line connection status, etc
